GPS boring machine，pilingmachine

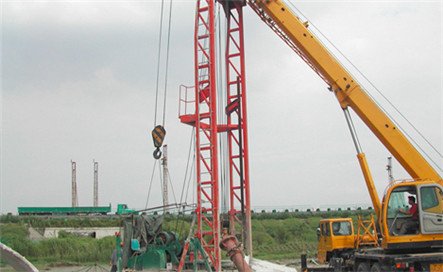

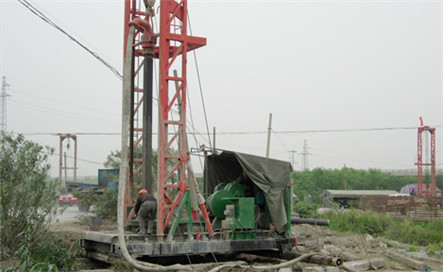

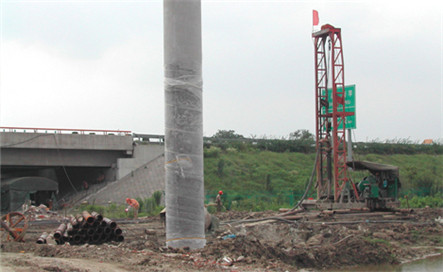

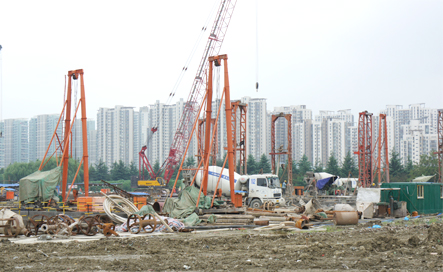

GPS boring machine

Slurry circulation / reverse circulation piling machine
GPS boring machine，pilingmachine GPS boring machine，pilingmachine GPS boring machine，pilingmachine GPS boring machine，pilingmachine
GPS boring machine，pilingmachine GPS boring machine，pilingmachine GPS boring machine，pilingmachine GPS boring machine，pilingmachine

Details
Features of GPS Boring Machine

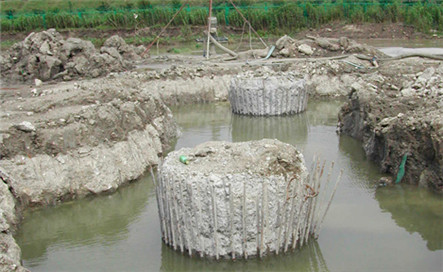

Economical pile solution for heavy structures on saturated soil profiles.Noise levels are low and limited to engine noise from the equipment.There is no vibration associated with underslurry piles.A good range of pile sizes from 600mm to 2500mm diameter.Piles can be installed to depths in excess of 50 metres.Circulation and reverse circulation operation can be applied.

Main technical Specification

Model

GPS-10

GPS-15

GPS-18

GPS-20

Max drilling dia. (mm)

1000

1500

1800

2000

Drilling depth(m)

50

60

100

100

Rotary table



torque(KN.M)

6

20

26

30

Main hoist capacity (Single rope)(KN)

30

30

30

30

Auxiliary hoist capacity (Single rope)(KN)

20

20

30

30

Mast



Rated load(hook)(KN)

177

180

180

180

Effective height (m)

9

8

9

9

Drilling rig power (KW)

30

30

37

37

Weight of drilling (ton)

8.4

10

12

15

Overall dimensions(M)

5.0x2.9x10.3

4.7x2.2x10

4.7*2.2*10

5.7*2.4*9.3
