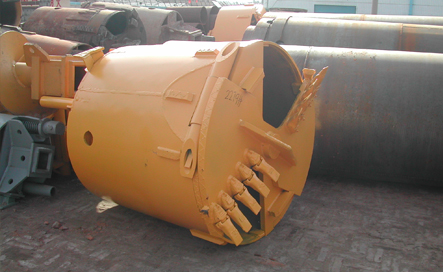

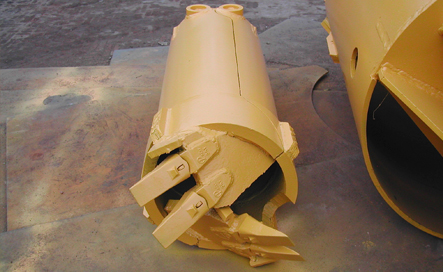

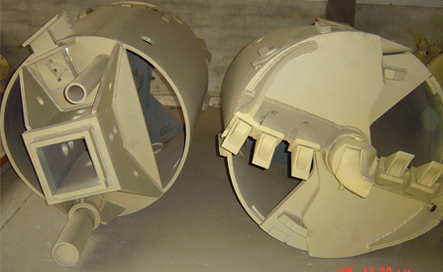

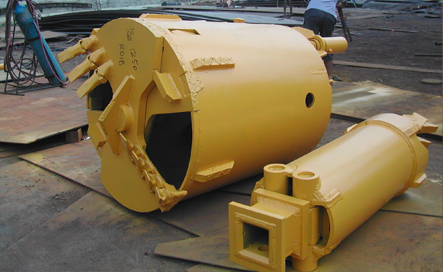

Soil bucket

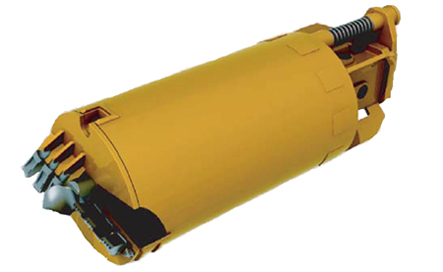

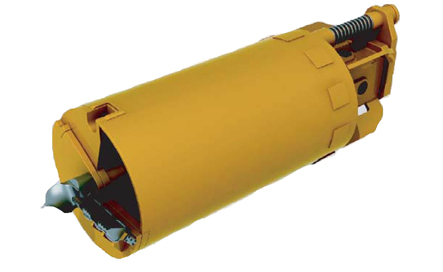

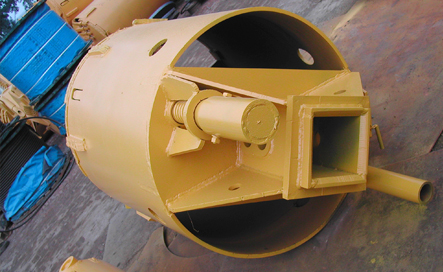

The soil auger is perfectly fit for the Kelly drilling in foundation technology, which consisted of the Kelly box, cylinder, bottom plate & door, opening device, wear parts and pilot.

Soil bucket£¬pilingtools Soil bucket£¬pilingtools Soil bucket£¬pilingtools Soil bucket£¬pilingtools
Soil bucket£¬pilingtools Soil bucket£¬pilingtools Soil bucket£¬pilingtools

Details
Appliance

Suitable for Clay, limestone, silt, sand and gravel soil conditions etc.

Tool type

1. Single bottom or double bottom.

2. Single cutting edge or double cutting edge, (cutting edge with flat teeth normally).

3. With or without collar plate with chisel at side.

Tool dimensions

Diameter(mm)

Casing Specifications

Cyl. Thickness(mm)

Bottom thickness(mm)

Height(mm)

Weight(kg)

520

620/540

12

40

1470

685

600

750/670

12

40

1470

780

780

880/800

16

40

1470

1015

900

1000/920

16

40

1470

1165

1000

1180/1100

16

50

1470

1220

1060

1180/1100

16

50

1470

1300

1180

1300/1220

16

50

1470

1815

1350

1500/1400

16

50

1470

2115

1500

1650/1550

16

50

1270

2850

1800

2000/1880

16

50

1270

3450
