Casing oscillator

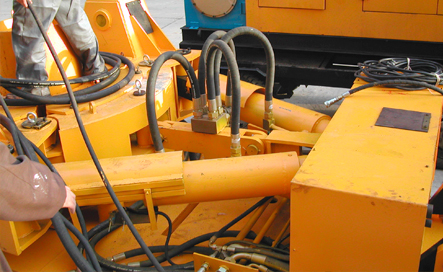

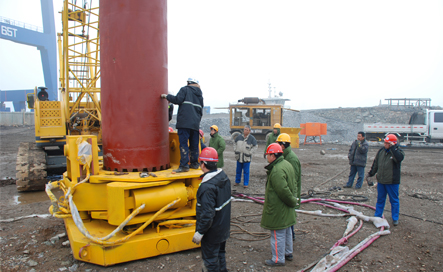

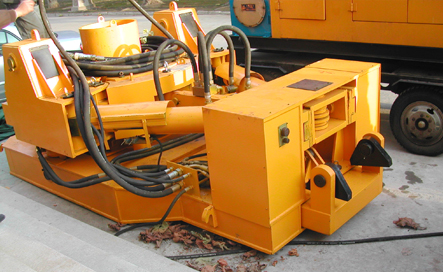

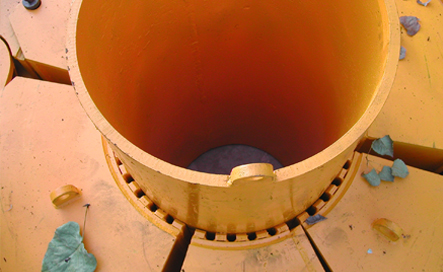

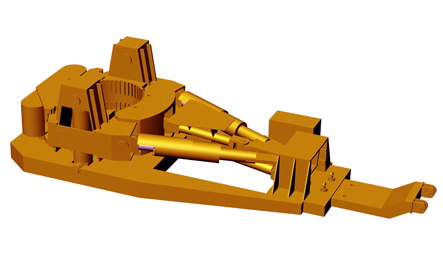

Casing oscillator ¨C this is a kind of advanced and environmental piling technology, with the support of casing tools, no mud, no side-effect of piling. We have two kinds of machine available for your choice: crawler crane attached type and rotary driller rig attached type.

Casing oscillator£¬pilingmachine Casing oscillator£¬pilingmachine Casing oscillator£¬pilingmachine Casing oscillator£¬pilingmachine
Casing oscillator£¬pilingmachine Casing oscillator£¬pilingmachine Casing oscillator£¬pilingmachine Casing oscillator£¬pilingmachine
Casing oscillator£¬pilingmachine Casing oscillator£¬pilingmachine Casing oscillator£¬pilingmachine Casing oscillator£¬pilingmachine

Details
Features

1. Environment friend and safety pile drilling method (Drilling with All casing, no mud).
2. Widely used in different difficult formations where there is a risk of collapse or broken formation, such As quicksand, flowing and fictile soils, high pressure groundwater formations, gravel and detritus-type soils etc.
3. High quality cast in-situ pile and secant pile wall. Large pile sizes with high load capacity The ability to penetrate substantial boulder layers and other obstructions.
4. Socket into hard rock is possible.
5. Permanent liners may be incorporated to protect pile shafts.
6. Depths of up to 60m are attainable.

Application
Foundation pile, Secant pile wall, Remove of abandoned foundation pile and barrier, river bridges and marine structures.
Prilling Tools
Casing tube
Hammer grab

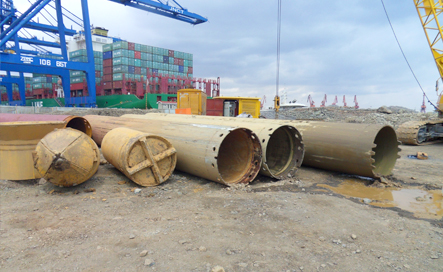

We are offering Bauer standard casing tubes in double wall and single wall format, as well as the customized single wall casing etc.
The double wall casing tube is available with the following sizes:
Dia.620/540mm; 750/670mm; 880/800mm; 1000/920mm; 1180/1100mm; 1200/1120mm; 1300/1220mm; 1500/1400mm; 1800/1700mm; 2000/1880mm; 2200/2080mm; 2500/2380mm.
There are two kinds of casing shoes, short shoe and long shoe available.
Casing oscillator (rotary rig attached type)

Model No.

1200R

1500R

1800R

Casing diameter

600mm to 1200mm

800mm to 1500mm

1000mm to 1800mm

Oscillating torque

1200KN.m

1900KN.m

2500KN.m

Stroke

450mm

450mm

450mm

Lifting force

1560KN

2100KN

2100KN

Clamping force

1500KN

2100KN

2100KN

Overall dimension

4200x2400x 1700mm

4280x2500x 1750mm

5200x2900x 1750mm

Weight

16000kgs

18000kgs

21000kgs

Casing oscillator (Crane attached type)

Model No.

1200F

1500F

1800F

Casing diameter

600mm to 1200mm

800mm to 1500mm

1000mm to 1800mm

Oscillating torque

1200KN.m

1900KN.m

2500KN.m

Stroke

500mm

500mm

500mm

Lifting force

1560KN

2120KN

2120KN

Clamping force

1500KN

2100KN

2100KN

Overall dimension

6500x2400x 1700mm

6550x2550x 1850mm

7600x2900x 1850mm

Weight

18000kgs

22000kgs

25000kgs

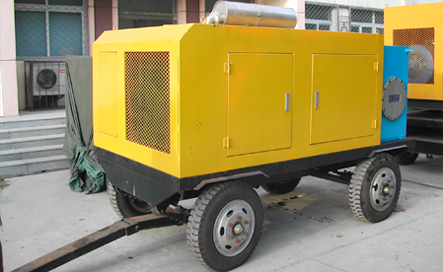

Hydraulic Power Station

Rated power: 130 KWRated pressure: 35MPa
Overall dimension: 3000¡Á1600¡Á 2600 mm
Weight £º 4500 K
